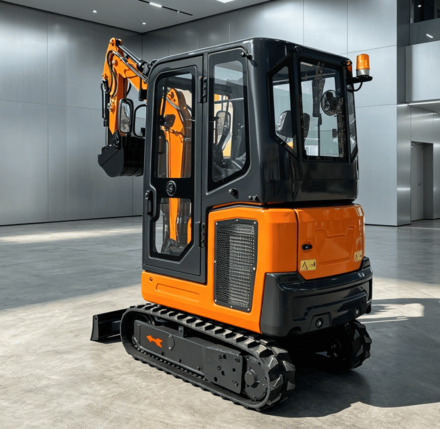

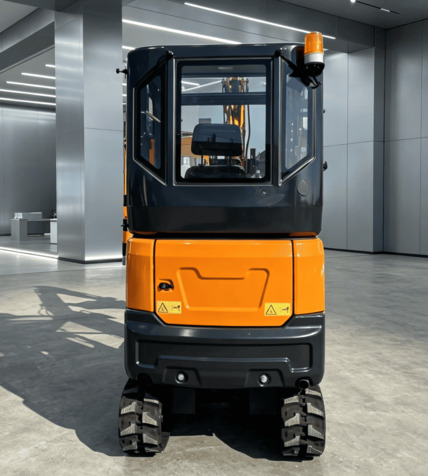

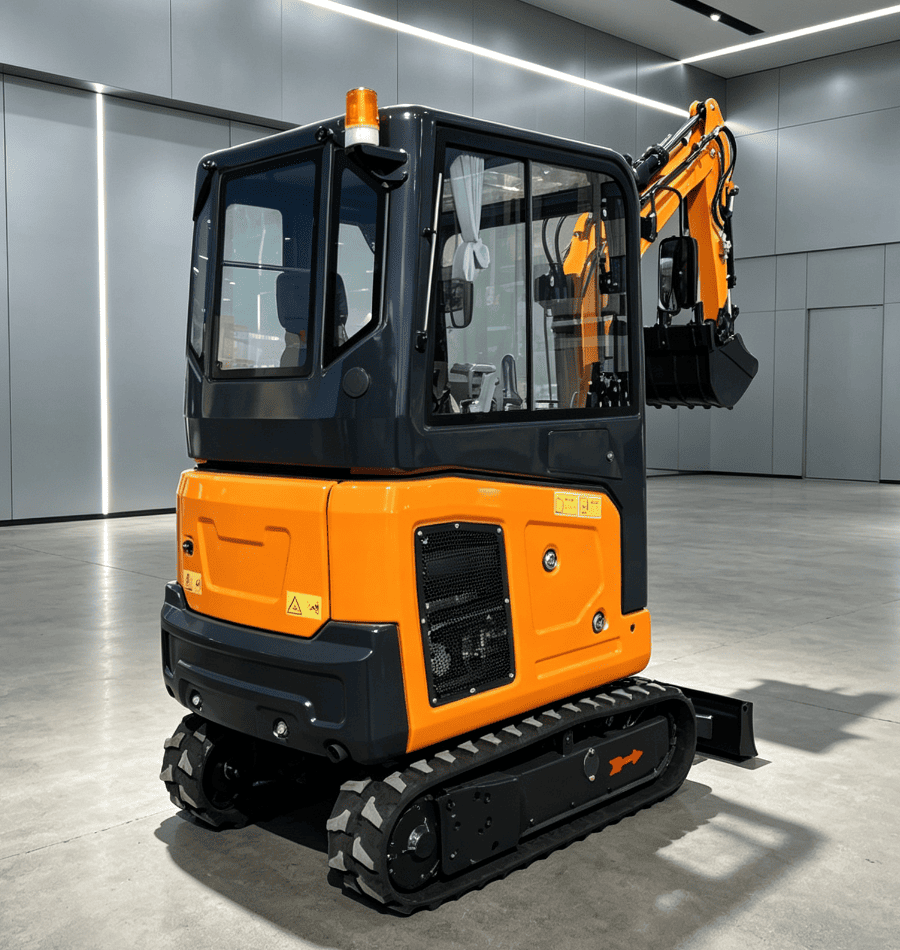

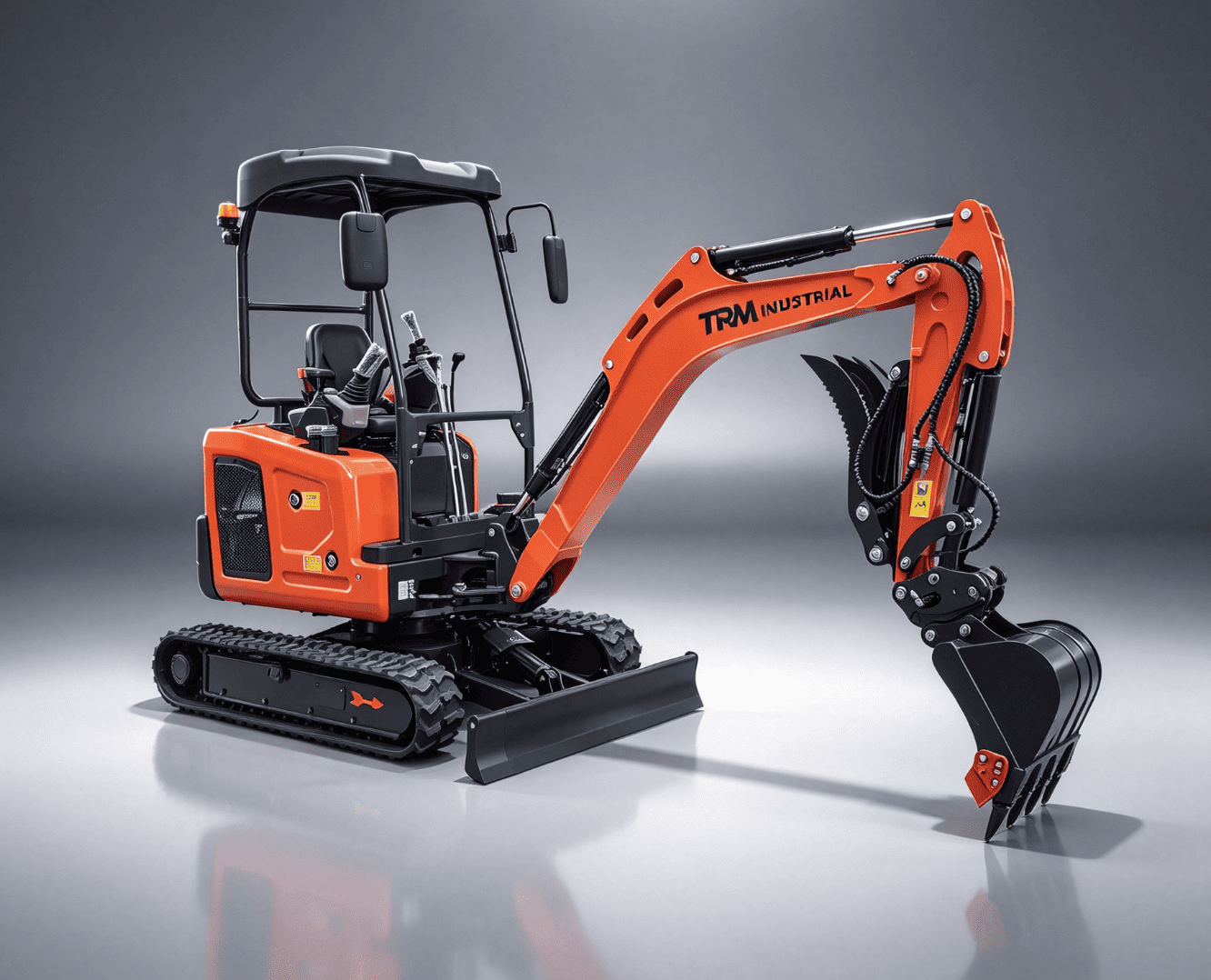

TPM Industrial- Mini Excavator TPM-35K

Comfortable operation: the hydraulic pilot system makes the control levers easy to maneuver and operate smoothly

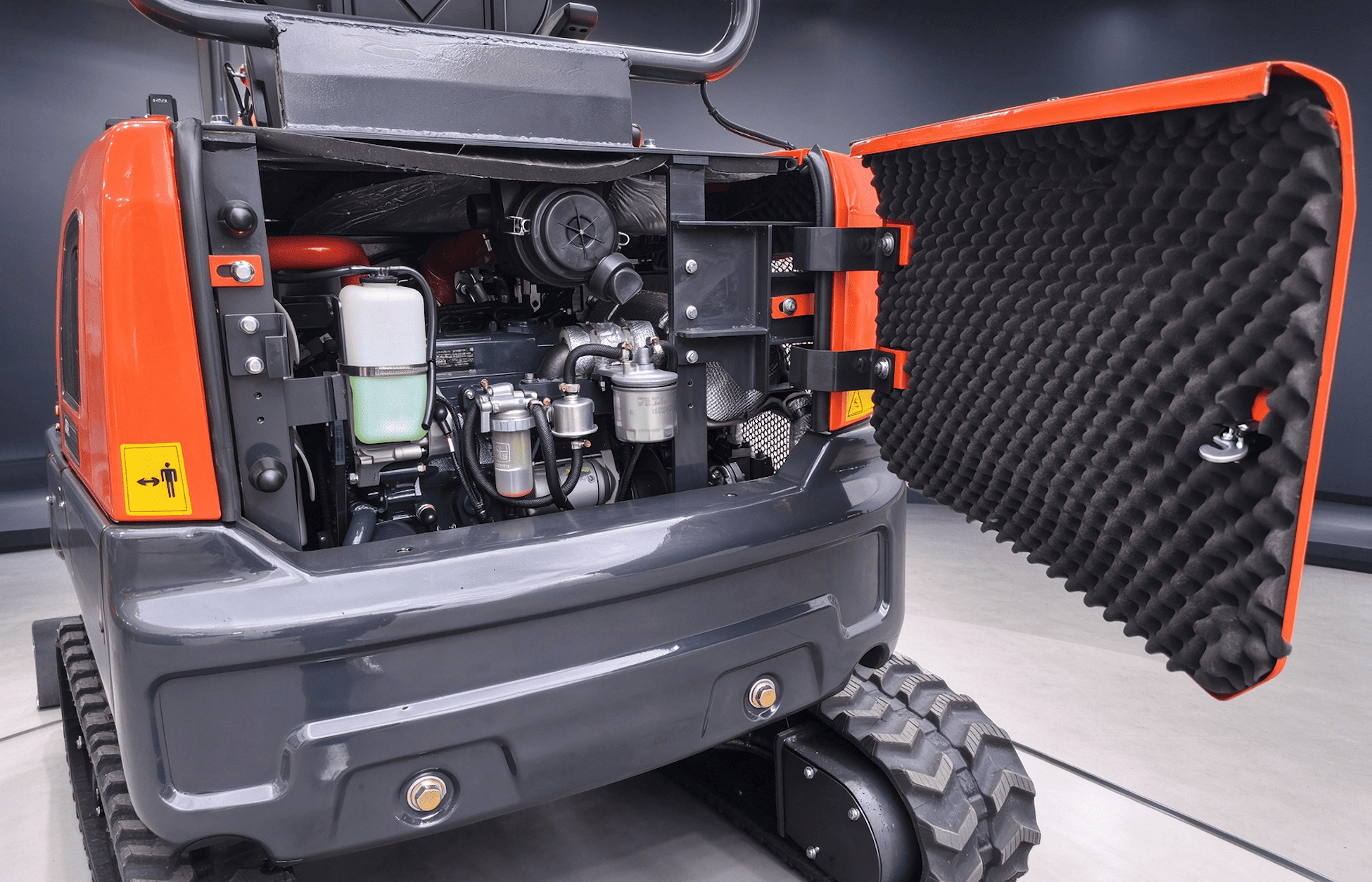

Equipped with Kubota engine: Ensures stable power output, low emissions and reduced maintenance costs.

Heavy operating weight: Providing greater stability,traction and digging force.

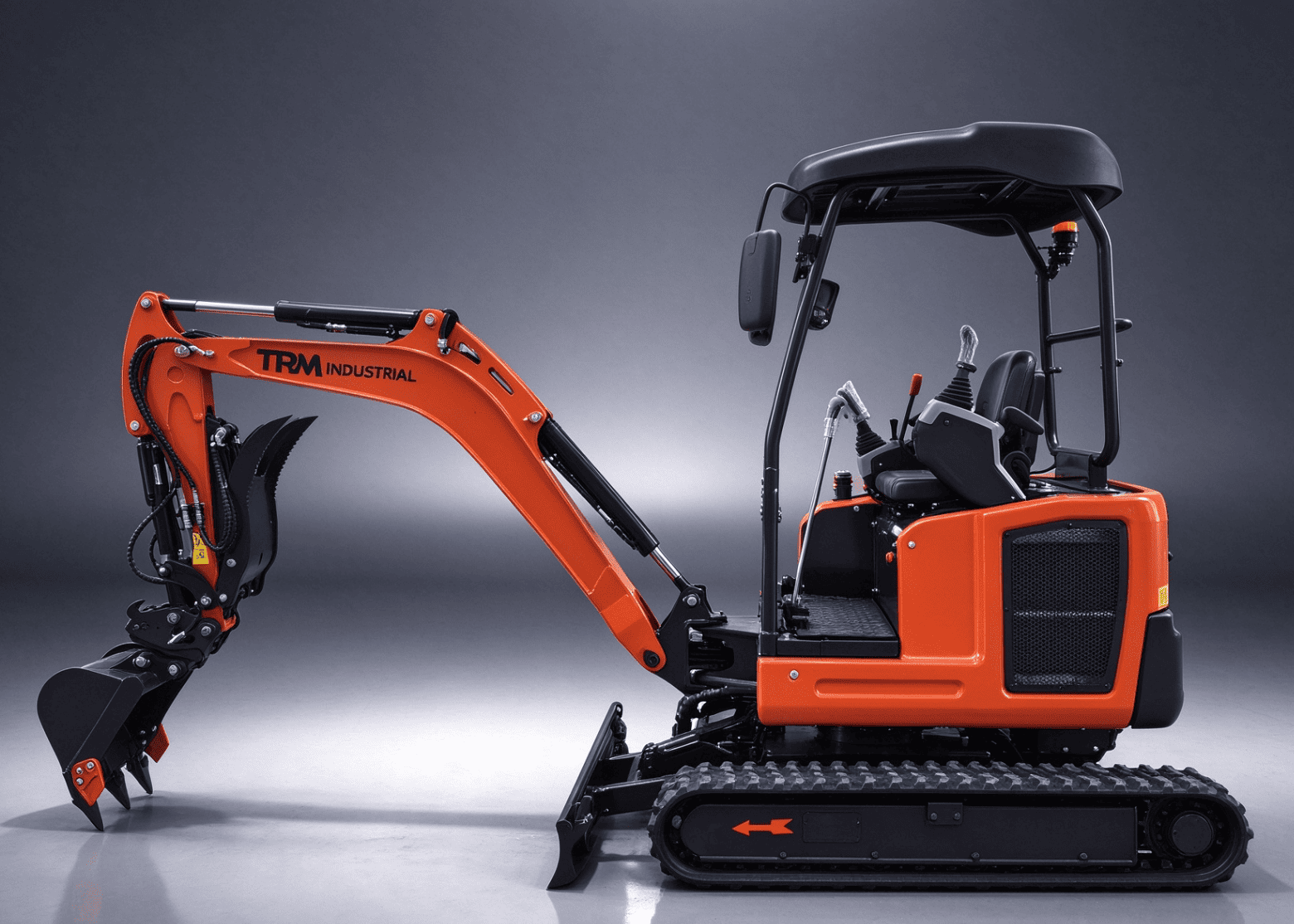

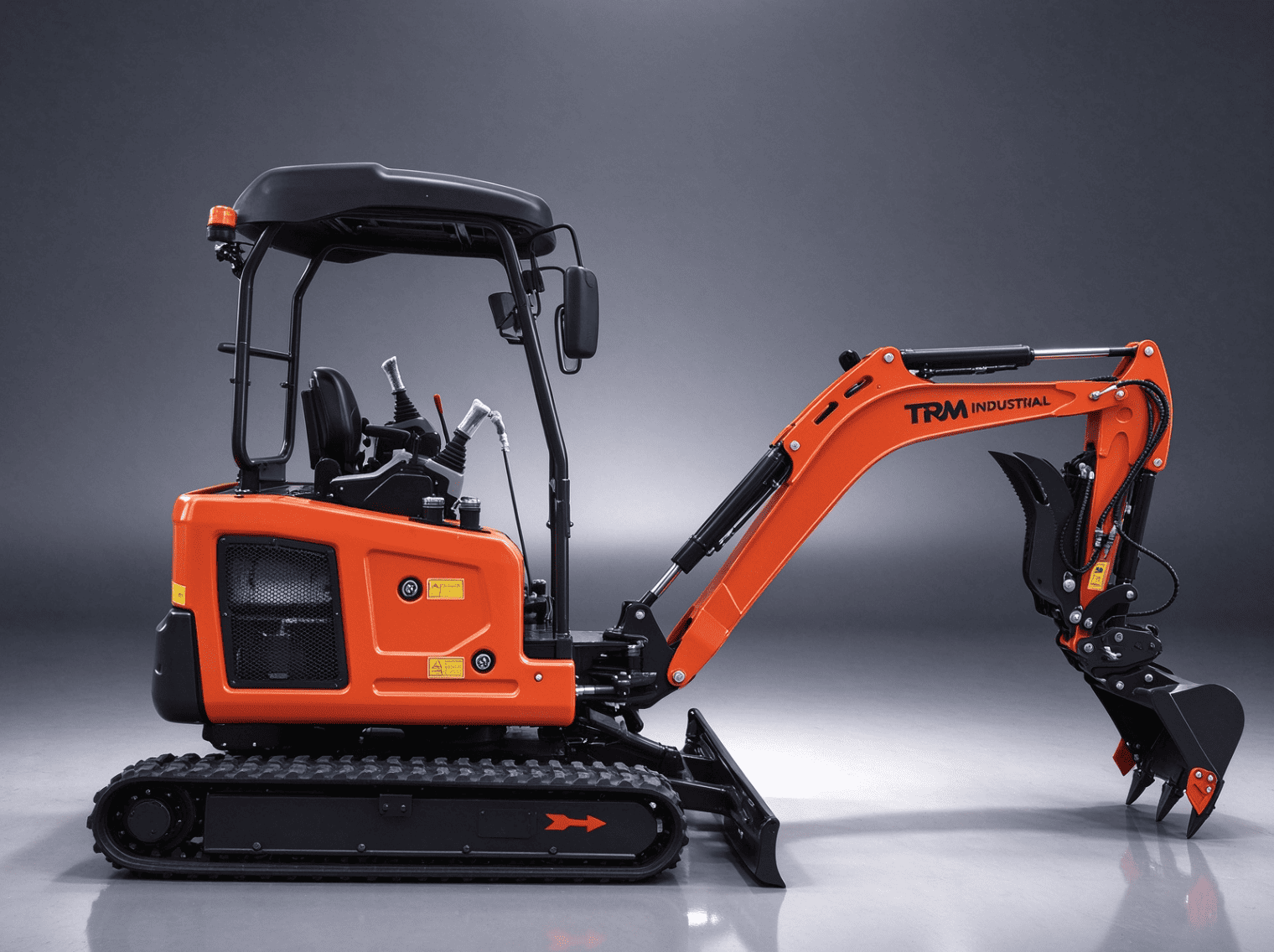

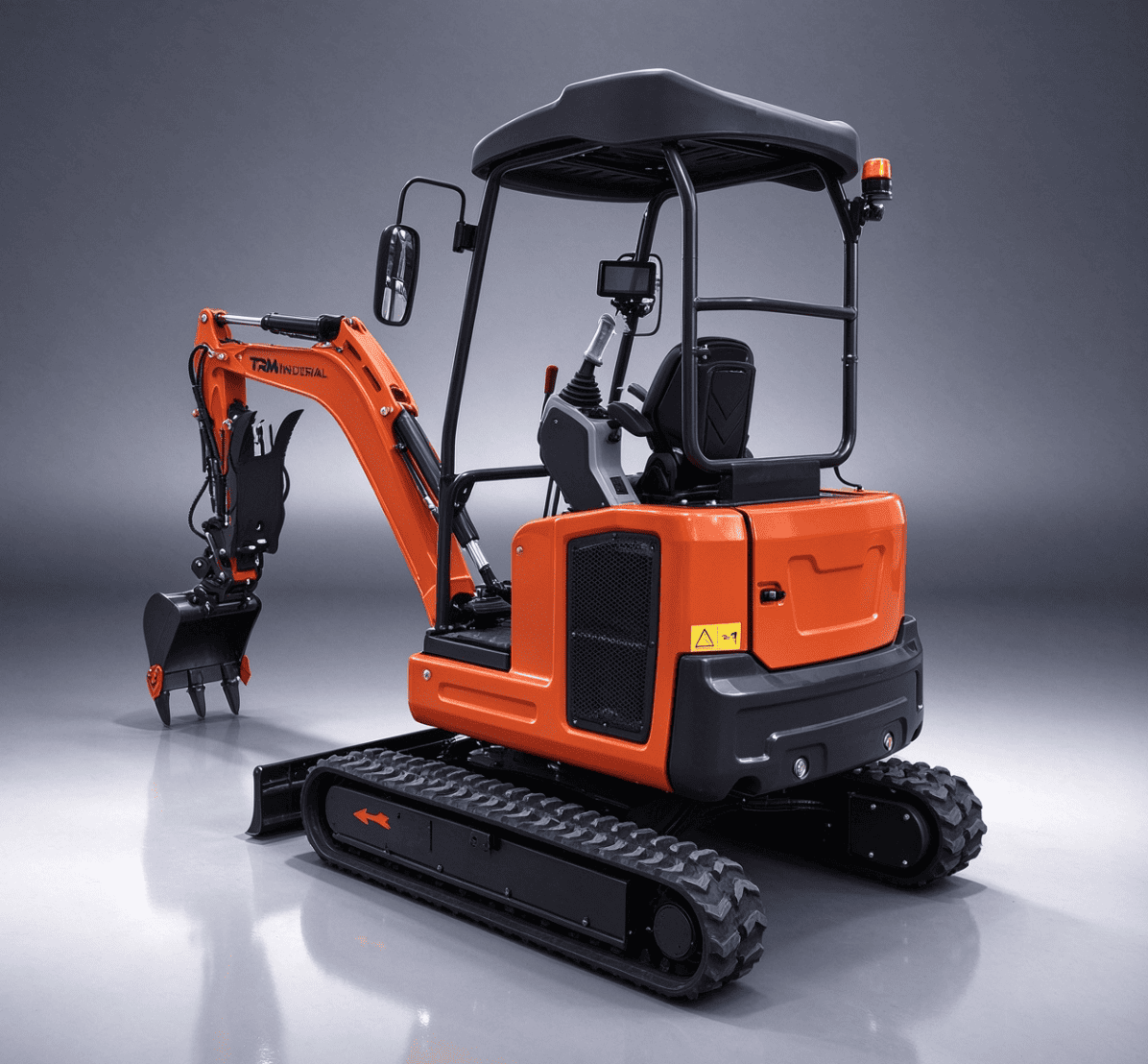

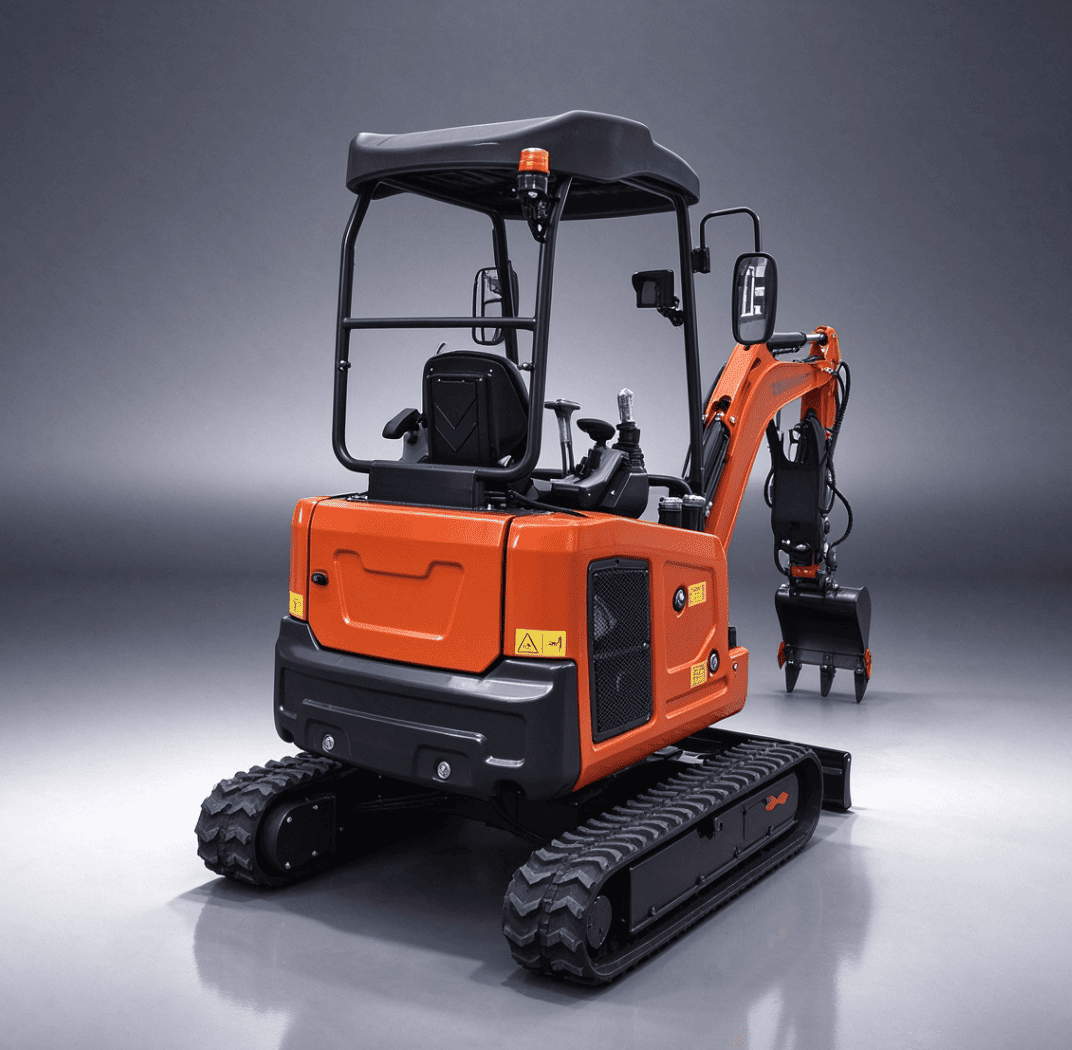

Four-Post Rollover Protection Structure: Enhances safely during Operation.

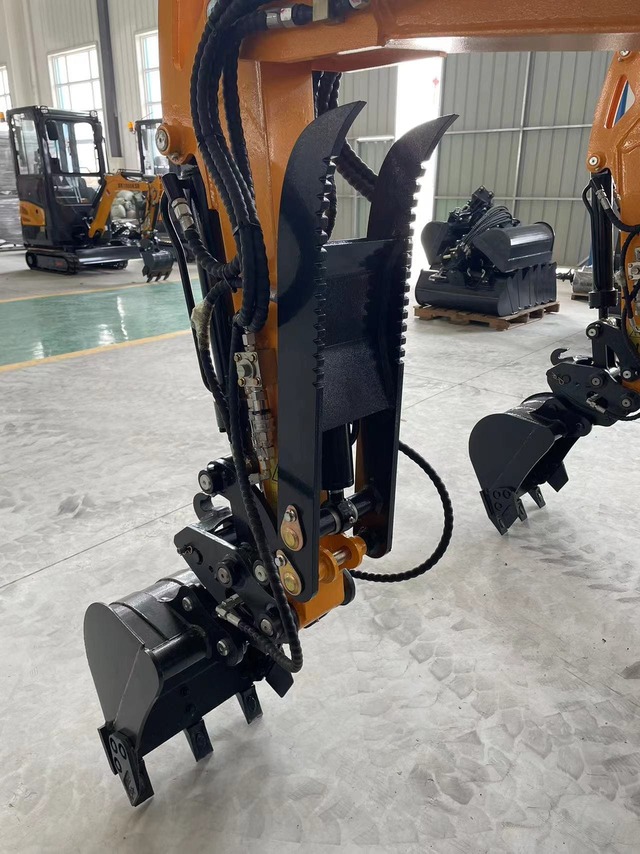

Hydraulic Thumb: Provides added versatility for handling materials.

Inverted Arm: Update the working performance, reach more far and dig deeper.

Efficient Peformance: Ideal for various construction and agricultural tasks.

User-Friendly design: Compact and ergonomic for easy operation and maneuverability.

Versatile Functionality: Handles leveling, backfilling and stability tasks.

Multipurpose Attachments: Interchangeable for digging, crushing and more.

Enhanced Mobility: Rubber crawlers offer low ground pressure and superior traction.

Specification Technical Parameters

Model: TPM35K

Engine: Kubota D1105

Power: 14.8kw

Type: 3 cylinders, Vertical water-cooled 4 stroke diesel engine

Max.torque: 72Nm

Displacement: 1.123L

Performance Parameter

Operating weight: 2100kg

Digging bucket capacity:0.06

Maximum digging force: 14Kn

Wheel base: 820mm

Alex base:1230mm

Platform back turning radius: 1125mm

Swing angel left: 75 degrees

Swing angle right: 45 degrees

Max.digging radius on ground : 3860mm

Max. digging detph: 2050mm

Max. digging height: 3365mm

Max. dumping height: 2385mm

Max. vertical digging depth: 1955mm

Min. rotation radius:1125mm

Max. upgrade height of bulldozer: 230mm

Max. digging depth of bulldozer: 275mm

Suitable for landscaping, construction, agriculture and utility works.

Contractors, farmers and rental companies benefit from its reliability and efficiency.

Manufacturer's Warranty included

1 year warranty on machine

Warranty does not cover normal wear and tear of damage from misuse

Contact customer service for warranty claims and suport
